Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
3 dimensiuni DN

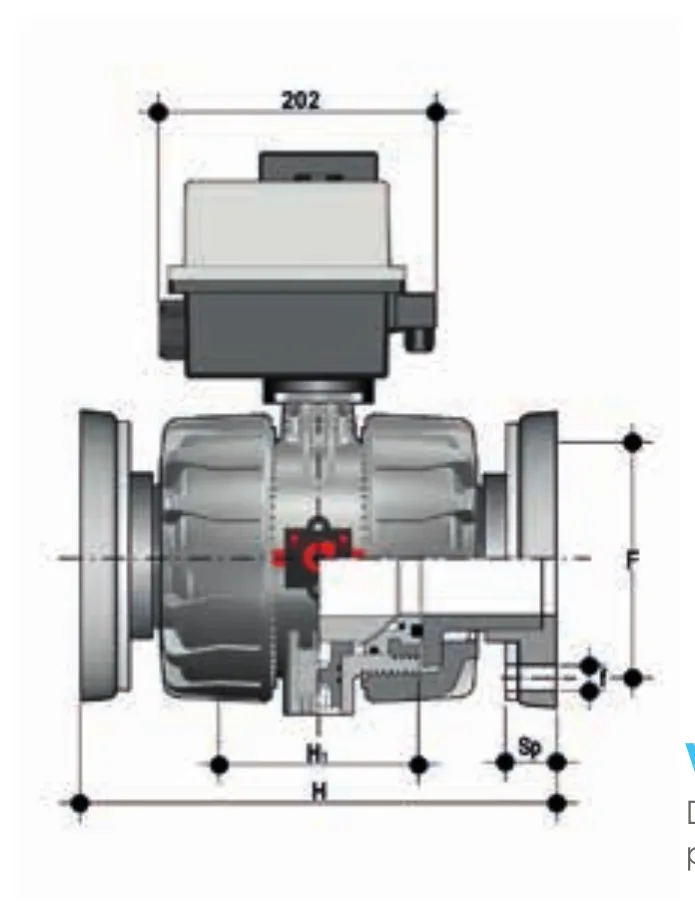

VKDOV/CE — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN PN 10/16, multi-volt electric actuator 90-240 V AC
DUAL BLOCK® Ball Valve with fixed flanges EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with multi-volt electric actuator 90-240 V AC 50-60 Hz
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOVEM075E / VKDOVEM075F | 65 | 75 | 16 | - | 9030 g | PVC-U |
| VKDOVEM090E / VKDOVEM090F | 80 | 90 | 16 | - | 11750 g | PVC-U |
| VKDOVEM110E / VKDOVEM110F | 100 | 110 | 16 | - | 16135 g | PVC-U |
