Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

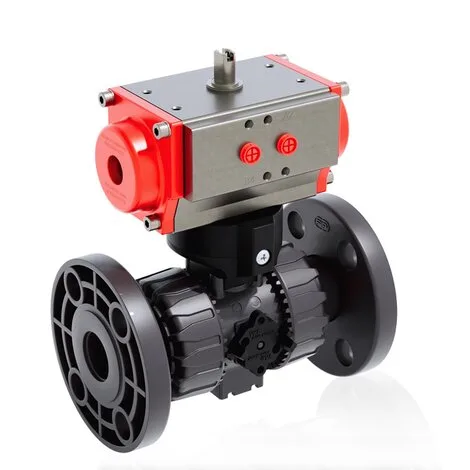

VKDOV/CP DA — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN PN 10/16, pneumatic actuator Double-Acting

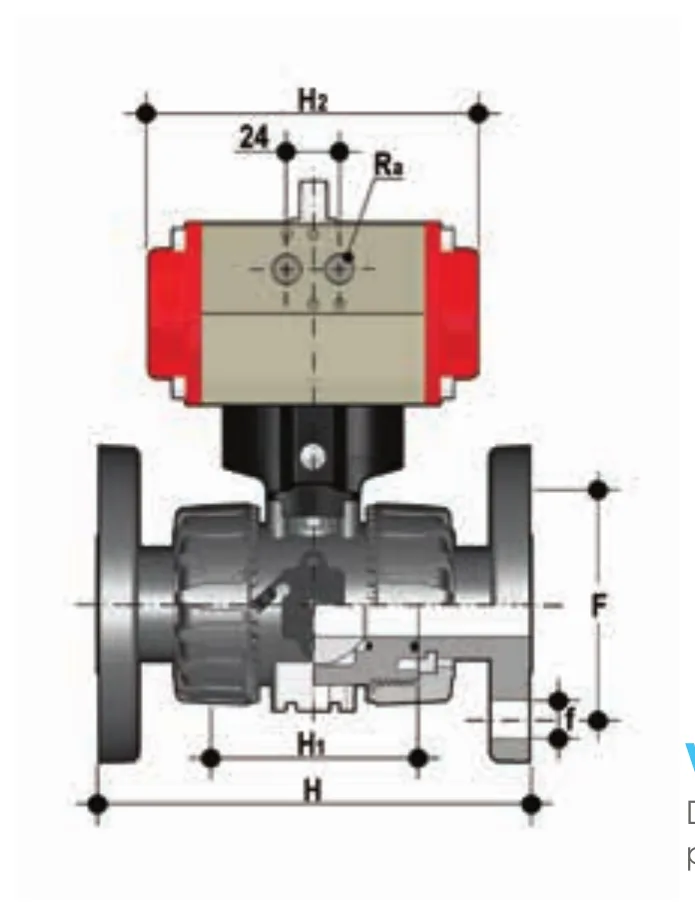

VKDOV/CP DA DUAL BLOCK® Ball Valve with fixed flanges EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Double-Acting function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOVDA020E / VKDOVDA020F | 15 | 20 | 16 | - | 1145 g | PVC-U |
| VKDOVDA025E / VKDOVDA025F | 20 | 25 | 16 | - | 1473 g | PVC-U |
| VKDOVDA032E / VKDOVDA032F | 25 | 32 | 16 | - | 1581 g | PVC-U |
| VKDOVDA040E / VKDOVDA040F | 32 | 40 | 16 | - | 2469 g | PVC-U |
| VKDOVDA050E / VKDOVDA050F | 40 | 50 | 16 | - | 2701 g | PVC-U |
| VKDOVDA063E / VKDOVDA063F | 50 | 63 | 16 | - | 3318 g | PVC-U |
