Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

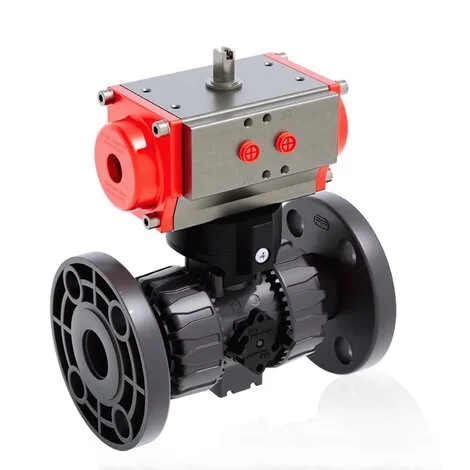

VKDOV/CP NO — DUAL BLOCK ball valve, fixed flanges EN/ISO/DIN PN 10/16, pneumatic actuator Normally Open

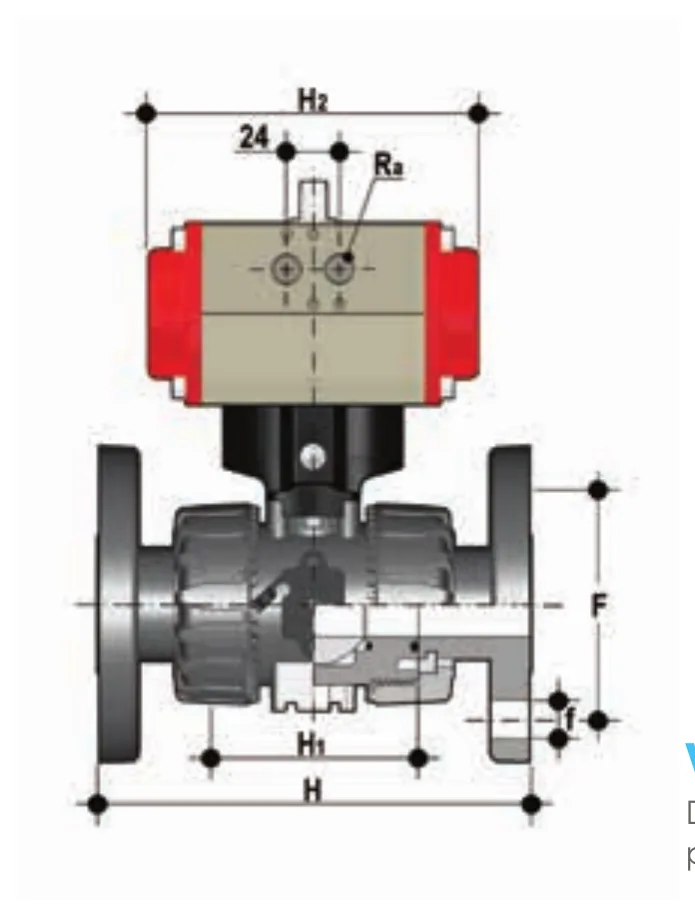

VKDOV/CP NO DUAL BLOCK® Ball Valve with fixed flanges EN/ISO/DIN PN 10/16, face to face dimensions as per EN 558-1 with pneumatic actuator, Normally Open function
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOVNO020E / VKDOVNO020F | 15 | 20 | 16 | - | 1205 g | PVC-U |
| VKDOVNO025E / VKDOVNO025F | 20 | 25 | 16 | - | 1583 g | PVC-U |
| VKDOVNO032E / VKDOVNO032F | 25 | 32 | 16 | - | 1691 g | PVC-U |
| VKDOVNO040E / VKDOVNO040F | 32 | 40 | 16 | - | 2669 g | PVC-U |
| VKDOVNO050E / VKDOVNO050F | 40 | 50 | 16 | - | 2901 g | PVC-U |
| VKDOVNO063E / VKDOVNO063F | 50 | 63 | 16 | - | 3518 g | PVC-U |
