Ball valve
Material corp
PVC-U
Material etanșare
EPDM code / FKM code
Variante disponibile
6 dimensiuni DN

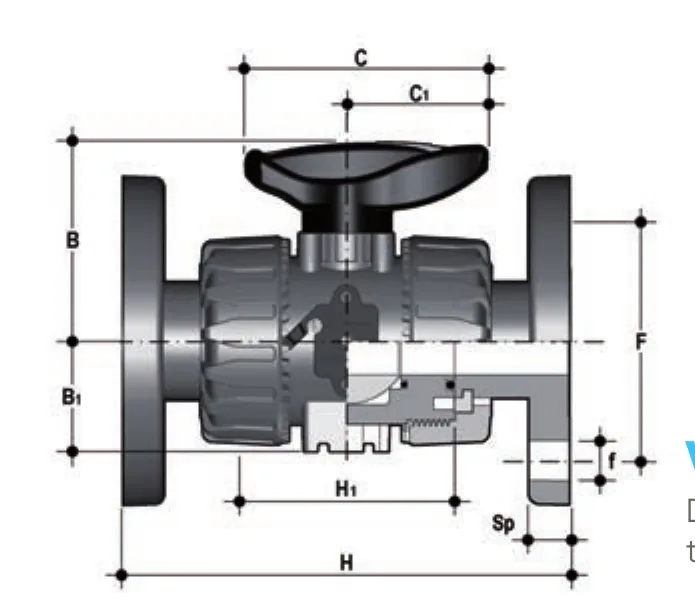

VKDOV — DUAL BLOCK 2-way ball valve with EN/ISO/DIN PN 10/16 fixed flanges, face to face EN 558-1
DUAL BLOCK® 2-way ball valve with EN/ISO/DIN PN 10/16 fixed flanges, Face to face according to EN 558-1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOV020E / VKDOV020F | 15 | 20 | 16 | - | 375 g | PVC-U |
| VKDOV025E / VKDOV025F | 20 | 25 | 16 | - | 590 g | PVC-U |
| VKDOV032E / VKDOV032F | 25 | 32 | 16 | - | 713 g | PVC-U |
| VKDOV040E / VKDOV040F | 32 | 40 | 16 | - | 1108 g | PVC-U |
| VKDOV050E / VKDOV050F | 40 | 50 | 16 | - | 1485 g | PVC-U |
| VKDOV063E / VKDOV063F | 50 | 63 | 16 | - | 2347 g | PVC-U |
