Ball valve
Material corp
PVC-U
Material etanșare
EPDM code / FKM code
Variante disponibile
3 dimensiuni DN

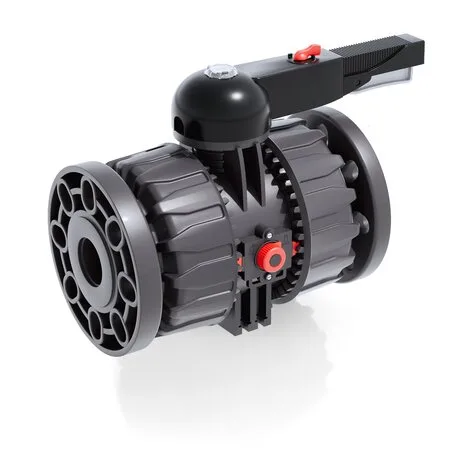

VKDOV — DUAL BLOCK 2-way ball valve with fixed flanges, drilled PN10/16
DUAL BLOCK® 2-way ball valve with fixed flanges, drilled PN10/16. Face to face according to EN 558-1
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (3 variante)

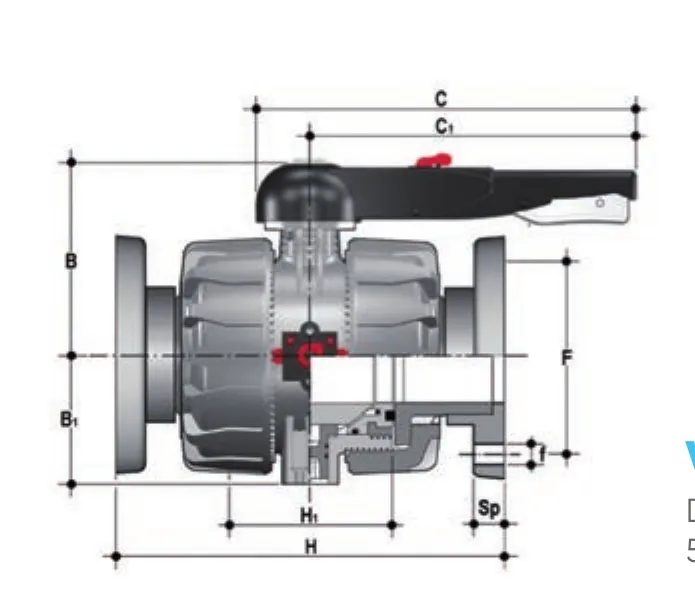

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKDOV075E / VKDOV075F | 65 | 75 | 16 | - | 6610 g | PVC-U |
| VKDOV090E / VKDOV090F | 80 | 90 | 16 | - | 9330 g | PVC-U |
| VKDOV110E / VKDOV110F | 100 | 110 | 16 | - | 13815 g | PVC-U |
