Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN
VKRBF/CE 24 V AC/DC 4-20 mA — DUAL BLOCK regulating ball valve, long spigot male ends PVDF head/IR weld, 24 V modulating actuator
VKRBF/CE 24 V AC/DC 4-20 mA DUAL BLOCK® regulating ball valve with long spigot male ends in PVDF for head welding/IR (CVDF) with multi-volt electric modulating actuator 24 V AC/DC, 12 V DC
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

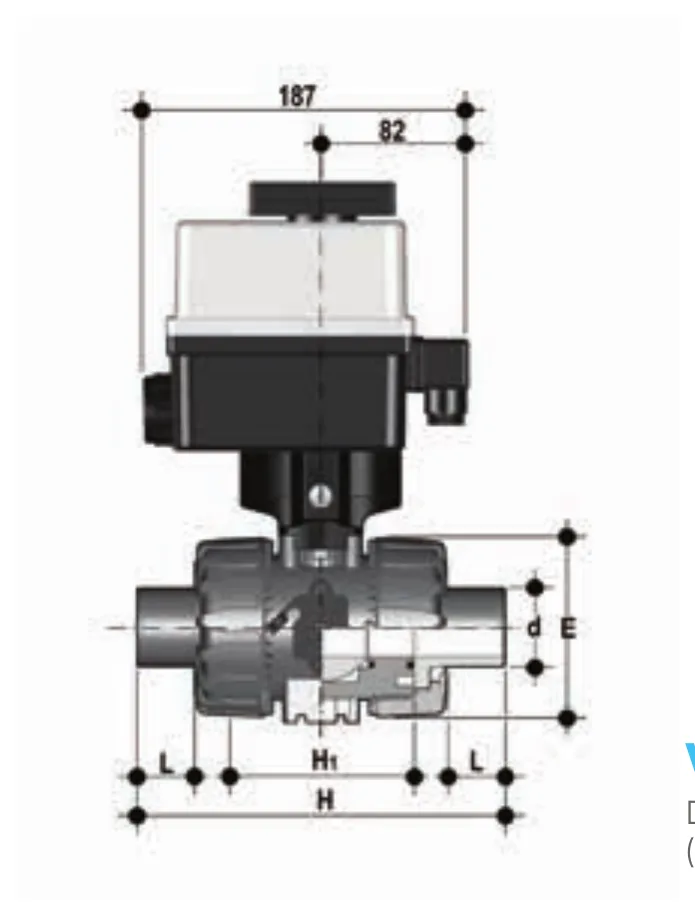

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKRBFEL020F0E | 15 | 20 | 16 | 41 | 1825 g | PVDF |
| VKRBFEL025F0E | 20 | 25 | 16 | 52 | 1963 g | PVDF |
| VKRBFEL032F0E | 25 | 32 | 16 | 55 | 2123 g | PVDF |
| VKRBFEL040F0E | 32 | 40 | 16 | 56 | 2491 g | PVDF |
| VKRBFEL050F0E | 40 | 50 | 16 | 58 | 2826 g | PVDF |
| VKRBFEL063F0E | 50 | 63 | *10 | 66 | 3611 g | PVDF |
