Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
7 dimensiuni DN

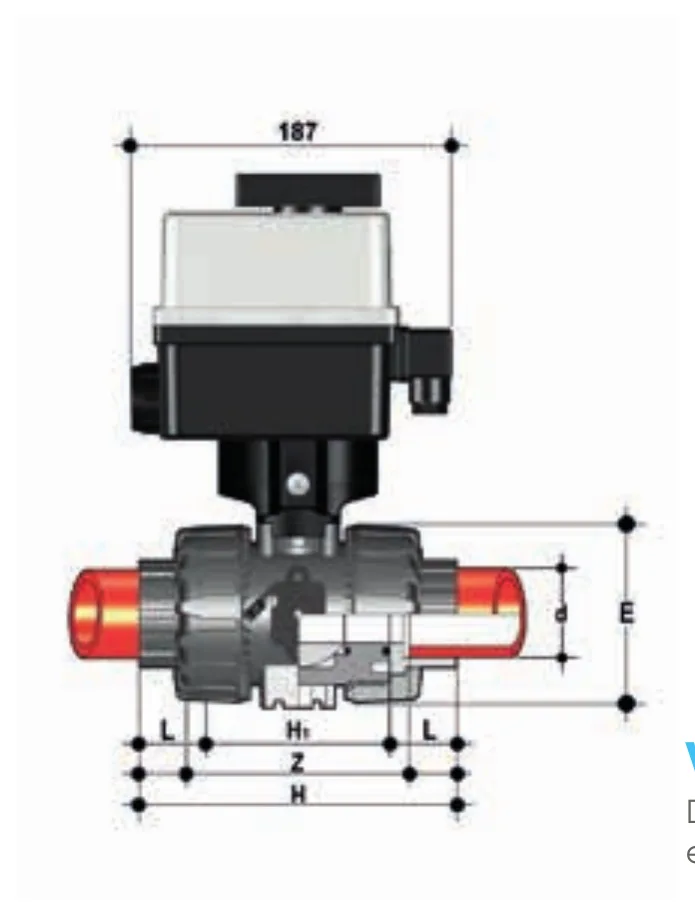

VKRIF/CE 90-240 V AC 4-20 mA — DUAL BLOCK regulating ball valve, female socket-weld, multi-volt modulating actuator
VKRIF/CE 90-240 V AC 4-20 mA DUAL BLOCK® regulating ball valve with female ends for socket welding, metric series with multi-volt electric modulating actuator 90-240 V AC 50-60 Hz
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (7 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKRIFEM016F0E | 10 | 16 | 16 | 14 | 1830 g | PVDF |
| VKRIFEM020F0E | 15 | 20 | 16 | 15 | 1825 g | PVDF |
| VKRIFEM025F0E | 20 | 25 | 16 | 17 | 1963 g | PVDF |
| VKRIFEM032F0E | 25 | 32 | 16 | 19 | 2123 g | PVDF |
| VKRIFEM040F0E | 32 | 40 | 16 | 23 | 2491 g | PVDF |
| VKRIFEM050F0E | 40 | 50 | 16 | 24 | 2826 g | PVDF |
| VKRIFEM063F0E | 50 | 63 | *10 | 28 | 3611 g | PVDF |
