Ball valve
Material corp
PVC-U
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

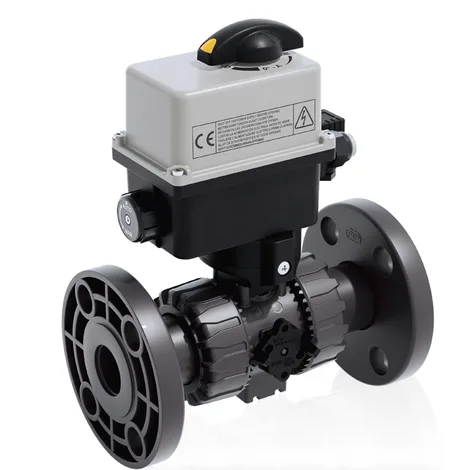

VKROAV/CE 24 V AC/DC 4-20 mA — DUAL BLOCK regulating ball valve, fixed flanges ANSI B16.5 cl.150#FF, electric modulating 24 V AC/DC
DUAL BLOCK® regulating ball valve with fixed flanges, drilled ANSI B16.5 cl.150#FF with electric modulating 24 V AC/DC
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

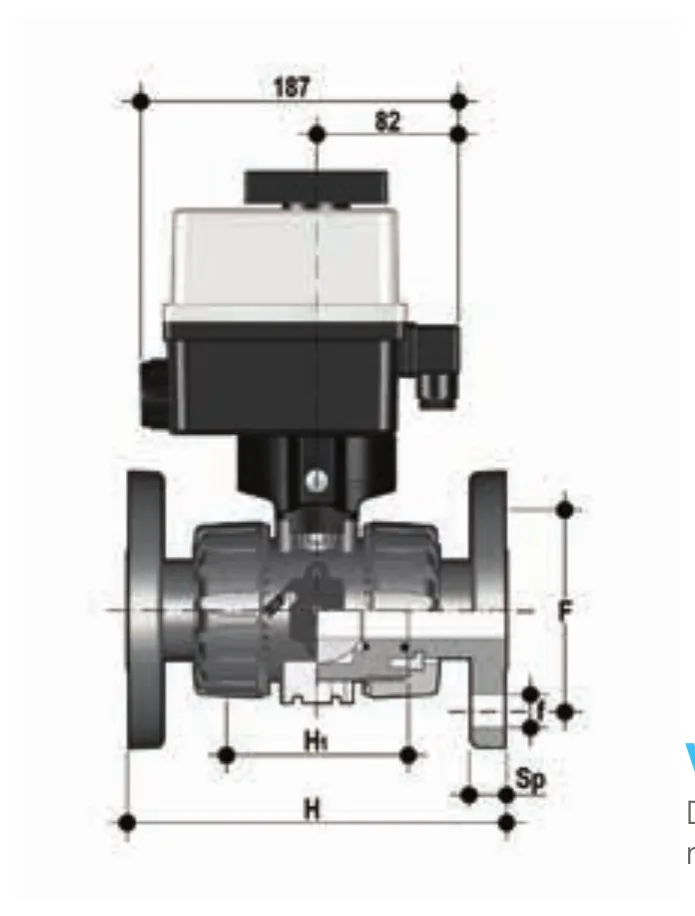

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKROAVEL012E0E / VKROAVEL012F0E | 15 | 1/2” | 16 | - | 1775 g | PVC-U |
| VKROAVEL034E0E / VKROAVEL034F0E | 20 | 3/4” | 16 | - | 1903 g | PVC-U |
| VKROAVEL100E0E / VKROAVEL100F0E | 25 | 1” | 16 | - | 2011 g | PVC-U |
| VKROAVEL114E0E / VKROAVEL114F0E | 32 | 1” 1/4 | 16 | - | 2369 g | PVC-U |
| VKROAVEL112E0E / VKROAVEL112F0E | 40 | 1” 1/2 | 16 | - | 2601 g | PVC-U |
| VKROAVEL200E0E / VKROAVEL200F0E | 50 | 2” | *10 | - | 3218 g | PVC-U |
