Ball valve
Material corp
PVDF
Material etanșare
FKM
Variante disponibile
6 dimensiuni DN

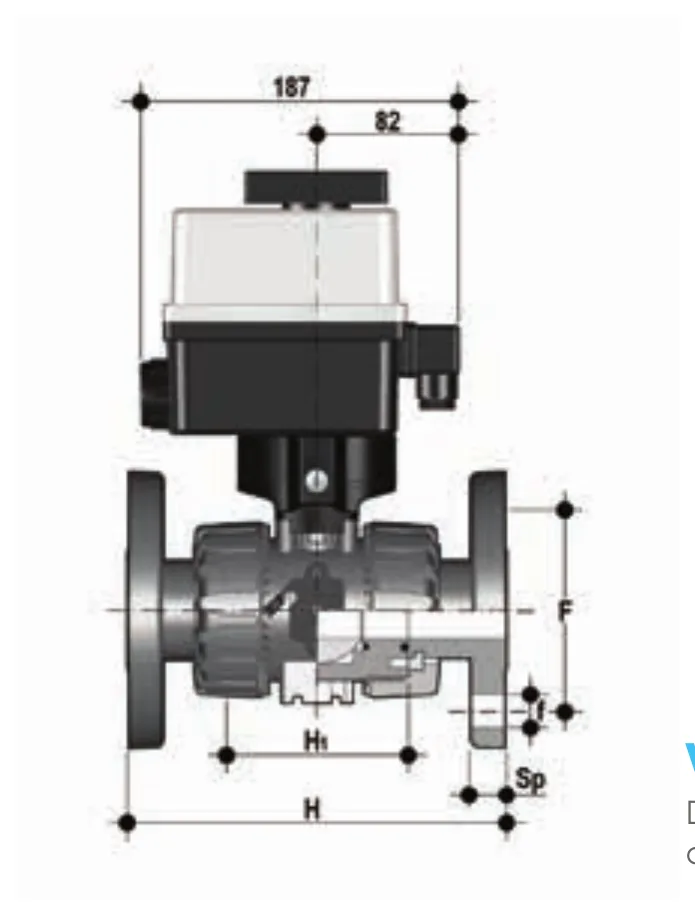

VKROF/CE 24 V AC/DC 4-20 mA — DUAL BLOCK regulating ball valve, fixed flanges EN/ISO/DIN PN10/16, 24 V modulating actuator
VKROF/CE 24 V AC/DC 4-20 mA DUAL BLOCK® regulating ball valve with fixed flanges, drilled EN/ISO/DIN PN10/16. Face to face according to EN 558-1. 24 V AC/DC electric modulating actuator
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)
| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKROFEL020F0E | 15 | 20 | 16 | - | 1825 g | PVDF |
| VKROFEL025F0E | 20 | 25 | 16 | - | 1963 g | PVDF |
| VKROFEL032F0E | 25 | 32 | 16 | - | 2123 g | PVDF |
| VKROFEL040F0E | 32 | 40 | 16 | - | 2491 g | PVDF |
| VKROFEL050F0E | 40 | 50 | 16 | - | 2826 g | PVDF |
| VKROFEL063F0E | 50 | 63 | *10 | - | 3611 g | PVDF |
