Ball valve
Material corp
PP-H
Material etanșare
EPDM / FKM
Variante disponibile
6 dimensiuni DN

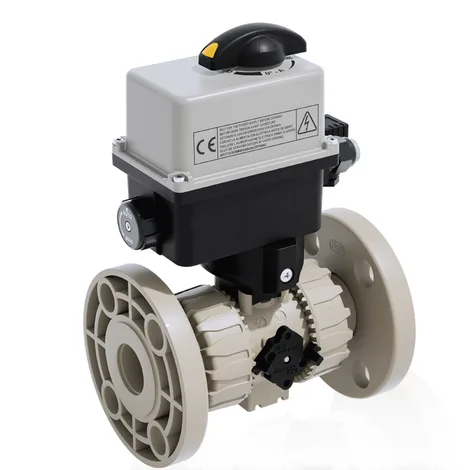

VKROM/CE — DUAL BLOCK® regulating ball valve with fixed flanges, drilled EN/ISO/DIN PN10/16. Face to face according to EN 558-1. Multi-volt electric actuator 90-240 V AC 50-60 Hz
DUAL BLOCK® regulating ball valve with fixed flanges, drilled EN/ISO/DIN PN10/16. Face to face according to EN 558-1. Multi-volt electric actuator 90-240 V AC 50-60 Hz
Informații Suplimentare
- Disponibil pe stoc sau la comandă
- Suport tehnic complet pentru instalare
- Certificat de conformitate inclus
- Livrare în toată România
Specificații (6 variante)

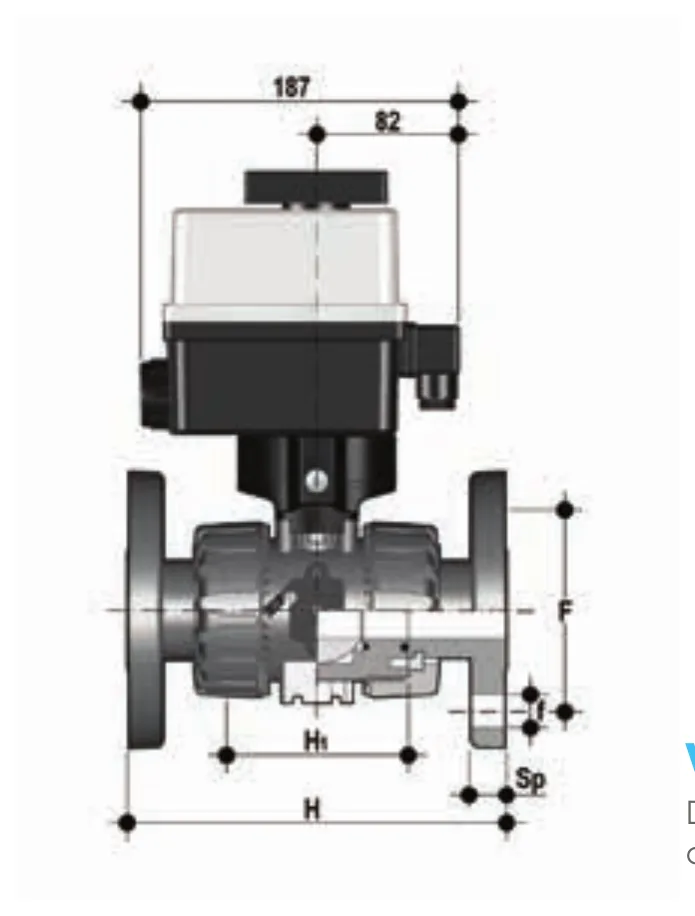

| Referință | DN | d | PN | L | Greutate | Material |
|---|---|---|---|---|---|---|
| VKROMEM020E0E / VKROMEM020F0E | 15 | 20 | 10 | - | 1715 g | PP-H |
| VKROMEM025E0E / VKROMEM025F0E | 20 | 25 | 10 | - | 1791 g | PP-H |
| VKROMEM032E0E / VKROMEM032F0E | 25 | 32 | 10 | - | 1871 g | PP-H |
| VKROMEM040E0E / VKROMEM040F0E | 32 | 40 | 10 | - | 2156 g | PP-H |
| VKROMEM050E0E / VKROMEM050F0E | 40 | 50 | 10 | - | 2358 g | PP-H |
| VKROMEM063E0E / VKROMEM063F0E | 50 | 63 | 10 | - | 2807 g | PP-H |
